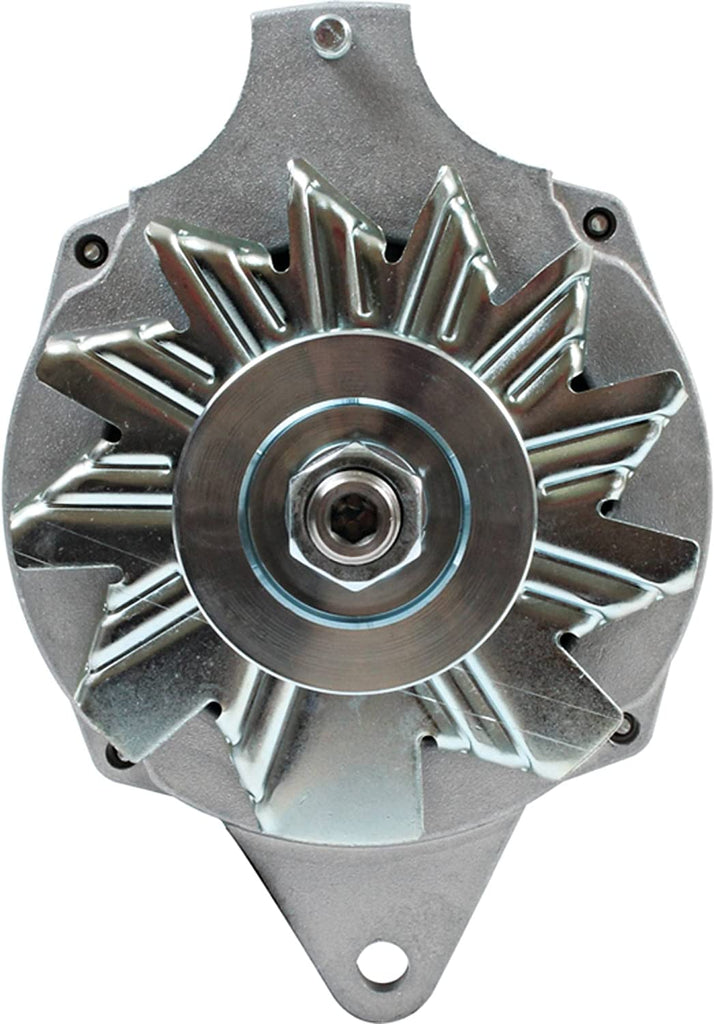

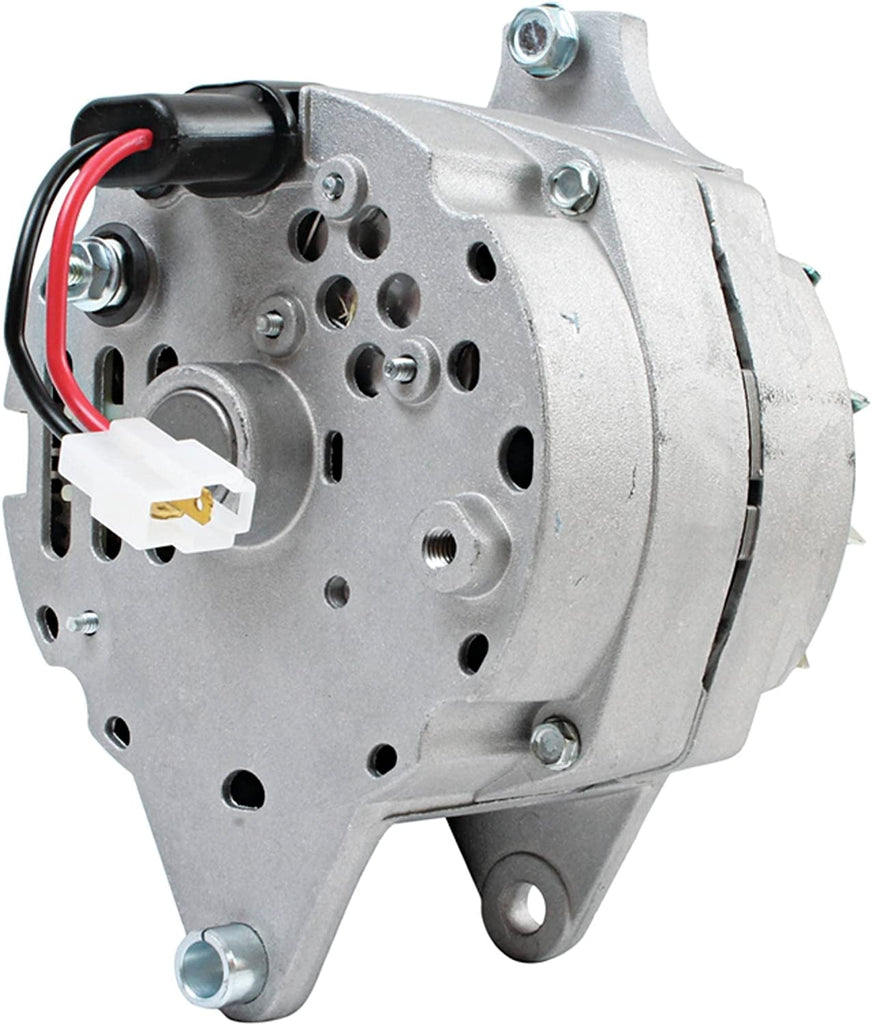

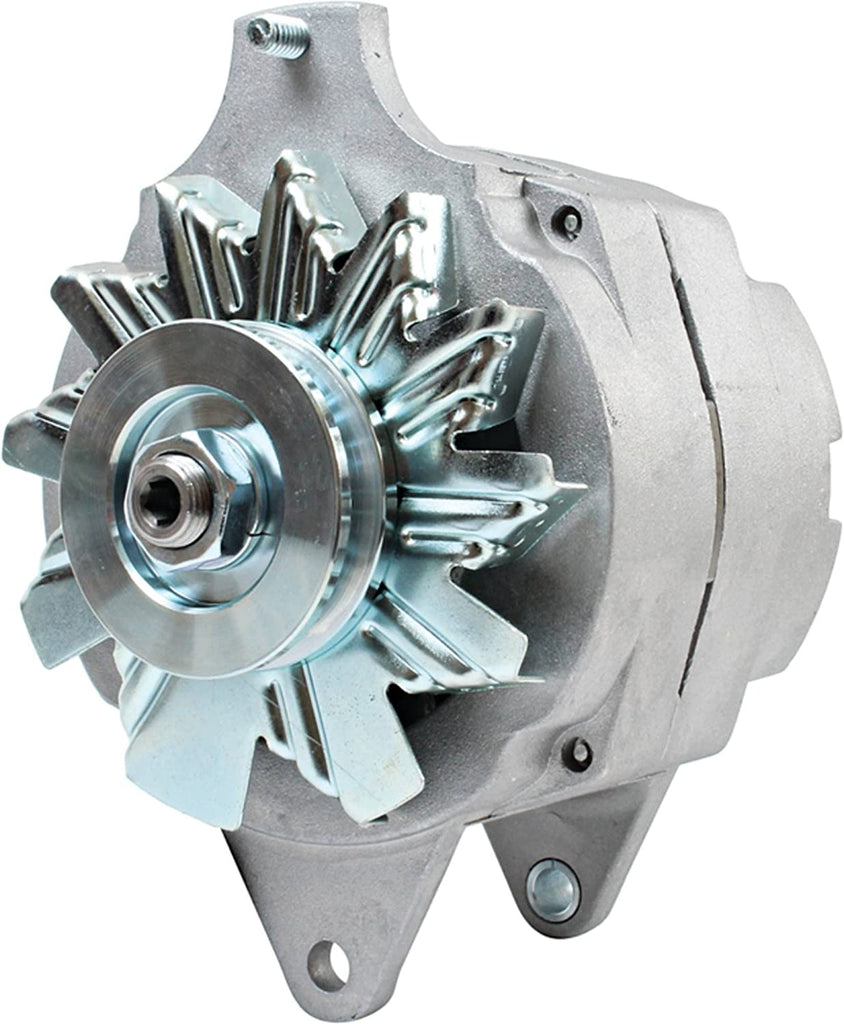

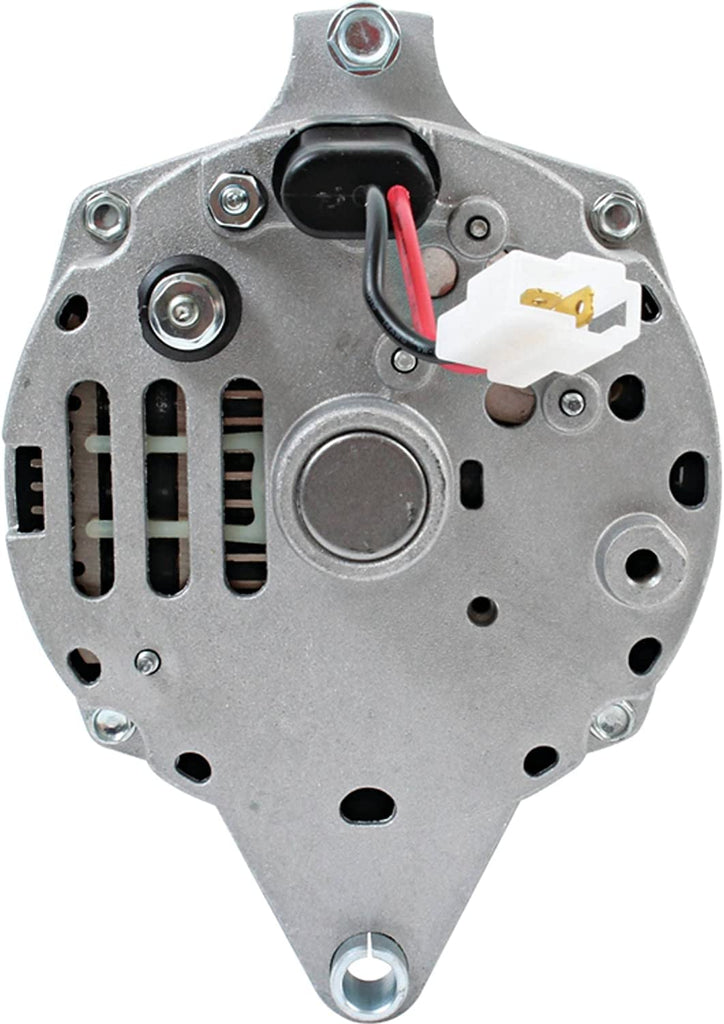

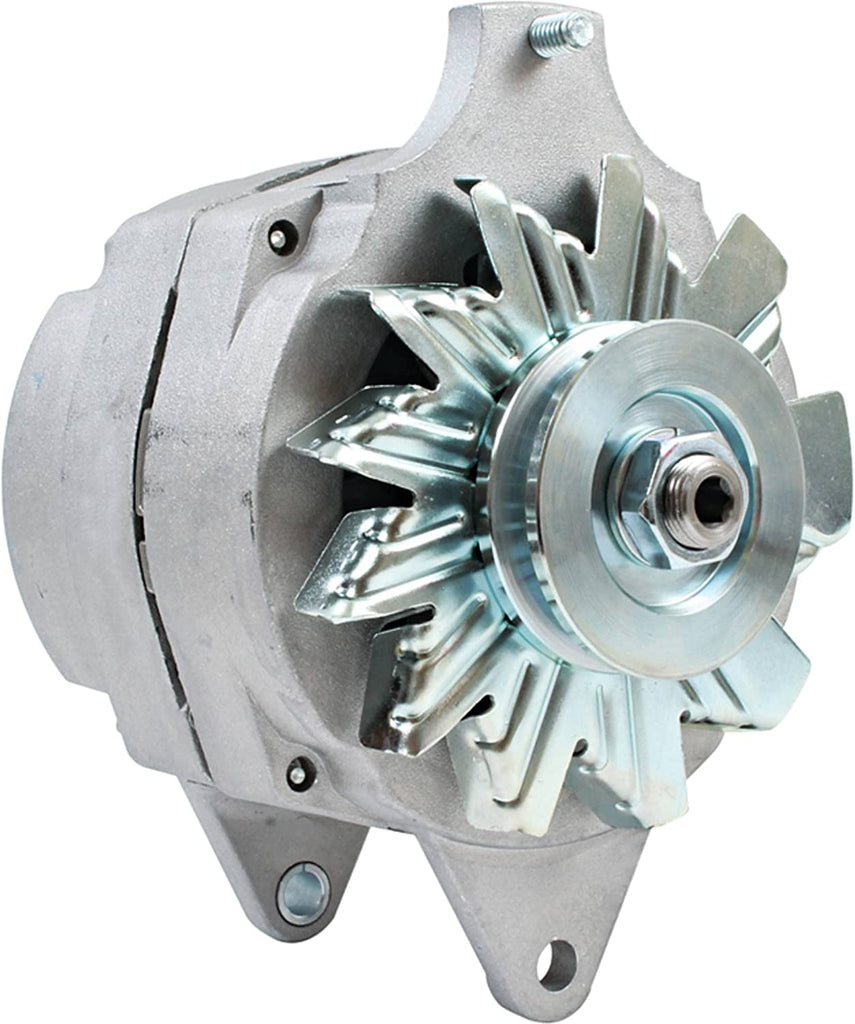

Alternator For Yanmar Marine Engines 120 Amp 3Jh2 3Jh3 4Jh3 6Ly2
$379.99
Alternator For Yanmar Marine Engines 120 Amp 3Jh2 3Jh3 4Jh3 6Ly2, Yanmar Marine 120A 129772-77200, 12977277200, LR155-20, LR155-20B 20109 4-6971
| Specifications: | |
| Unit Type | Alternator |
| Voltage | 12 |
| Rotation | CW |

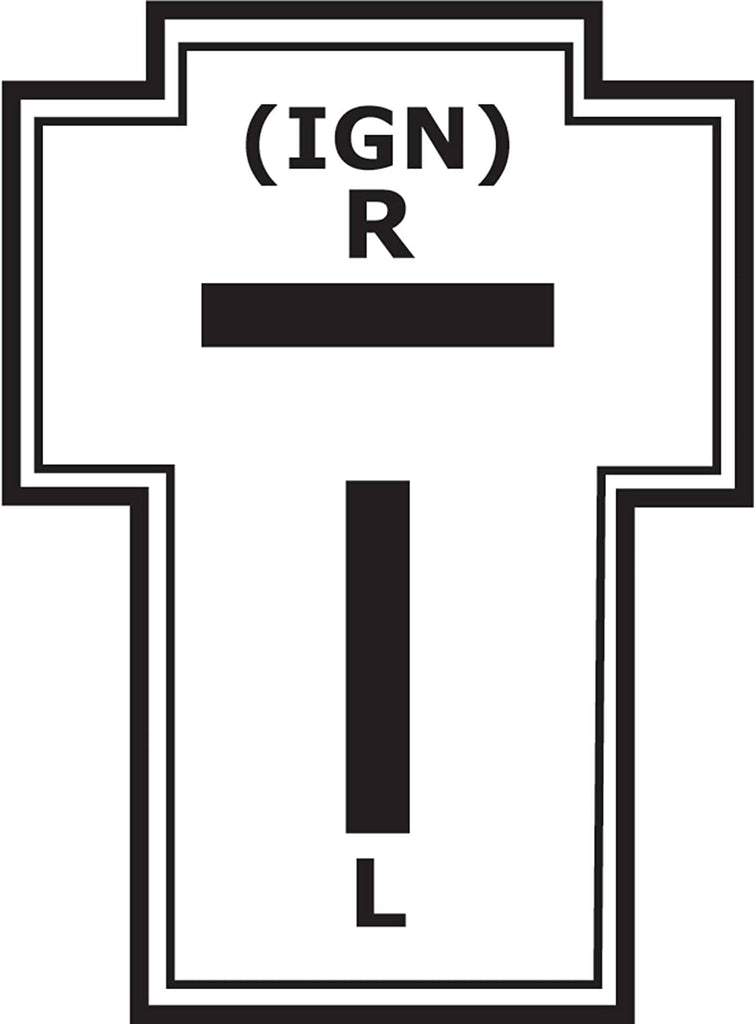

| Dimension | Replacement 10SI Unit:, Mtg. Ear 1 Hole: 5/16-18 Threaded, Mtg. Ear 2 Hole: 10mm Unthreaded, Mtg. Ear 3 Hole: 10mm Unthreaded, B+ Terminal: 12-24, R Terminal: 10-32, IGN Terminal: Spade, L Terminal: Spade, |
| Amperage | 120 |
| Clock | 12 |
| Pulley Class | V1 |
| Regulator | IR |
| Fan Type | EF |
| Fits | Delco 10SI Type Alternator 1-V PULLEY No Need For Ground Cable To Operate Used to Replace Hitachi Units on Yanmar Marine Applications (Lester 12107, 12272) |
2GM20, 2GMFL, 2GMFY(E)-E, 2GML, 2GMYE-EC, 3GM30, 3HM35, 3JH2, 3JH2BE, 3JH2E, 3JH3, 3JH3E-YEU, 3JH4E, 3YM20, 3YM30, 4JH2-CE, 4JH3E, 4JH3-TE, 4JHE, 6LY2-STE, UJH2E
| Replaces these part numbers: | |
| API MARINE | 20109 |
| ARROWHEAD | ADR0439 |
| EMP PARTS | 4-6971 |
| J & N | 400-44109 |
1 Year Warranty
