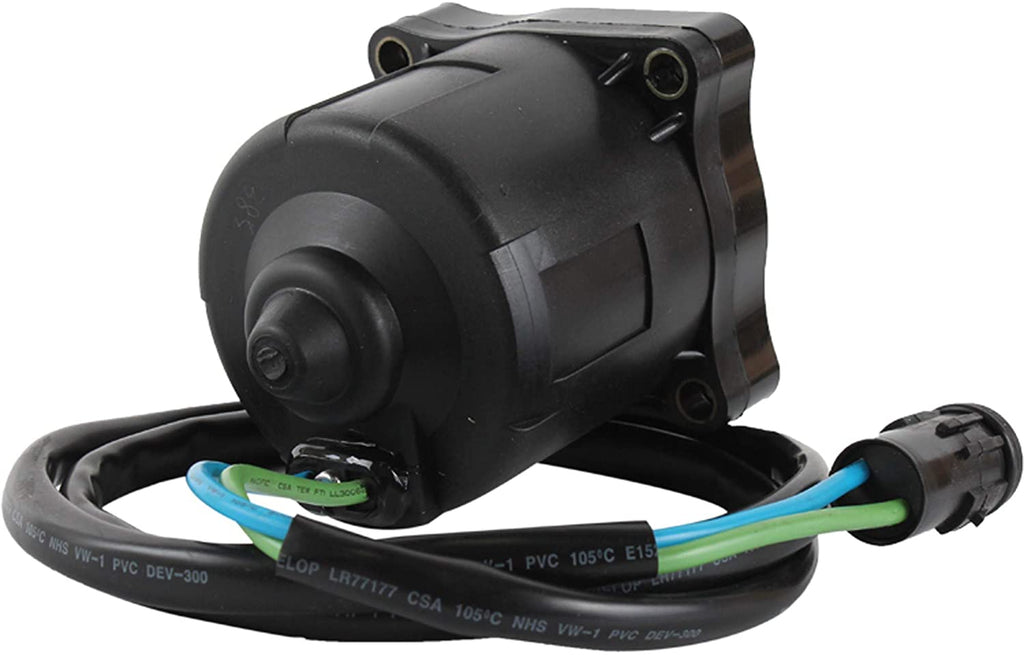

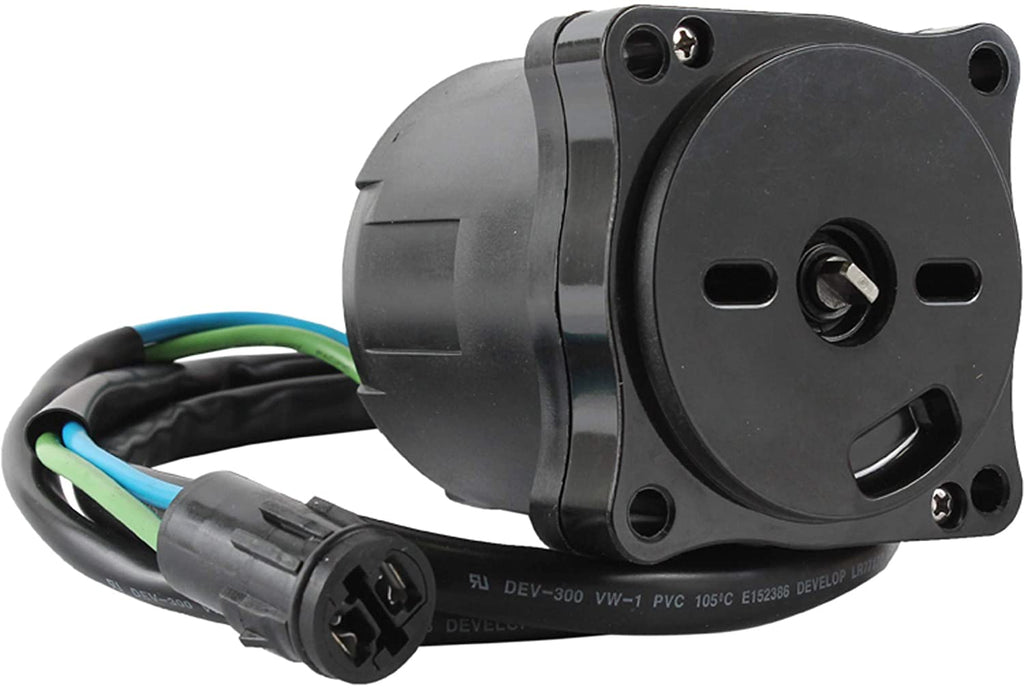

Tilt Trim Motor for Honda Marine BF200, BF225 Engine 2002-ON
$299.99
PRODUCT SPECS
| Item Condition | Aftermarket Part |
| Unit Type | Tilt & Trim Motor |
| Voltage | 12 |
| Rotation | RE |
| Dimension | OD: 3.091in / 78.5mm, Shaft OD: 0.315in / 8mm, Length: 4.429in / 112.5mm, Mtg. Holes 66mm On Center, Mtg. Ring 71mm OD, Shaft: 2.3mm Keyed, Note: Shaft Blade 8mm L x 2.6mm W x 5.7mm T, |
| Fits | HONDA 175-225HP Outboard Motors 2002-14 |
Compatible With/Replacement For:
HONDA BF175 All, BF200 2002-2014, BF225 2002-2014
REPLACES THESE PART NUMBERS
| ARCO MARINE | 6234 |
| ARROWHEAD | TRM0104 |
| HONDA | 36120-ZY3-013, 36120-ZY3-023 |
| J & N | 430-22122 |
Specs:
- Volt 12
- Condition New
- Rotation Direction Reversible
- OD 3.091"
- OD 78.500 mm
- Shaft OD 0.315"
- Shaft OD 8mm
- Length 112.500 mm
- Length 4.429"
- Shaft 2.3mm Keyed
- Current Type DC
- Warranty 1 Year
12 Month Warranty
