Applications:
MAKE TYPE MODEL YEAR ENGINE
YAMAHA Tilt & Trim Various Models 1984 - 1991 50-200 H.P.

Specifications:
Item Condition NEW, AFTERMARKET
Unit Type Tilt & Trim Motor
Part Type UNIT
Voltage 12

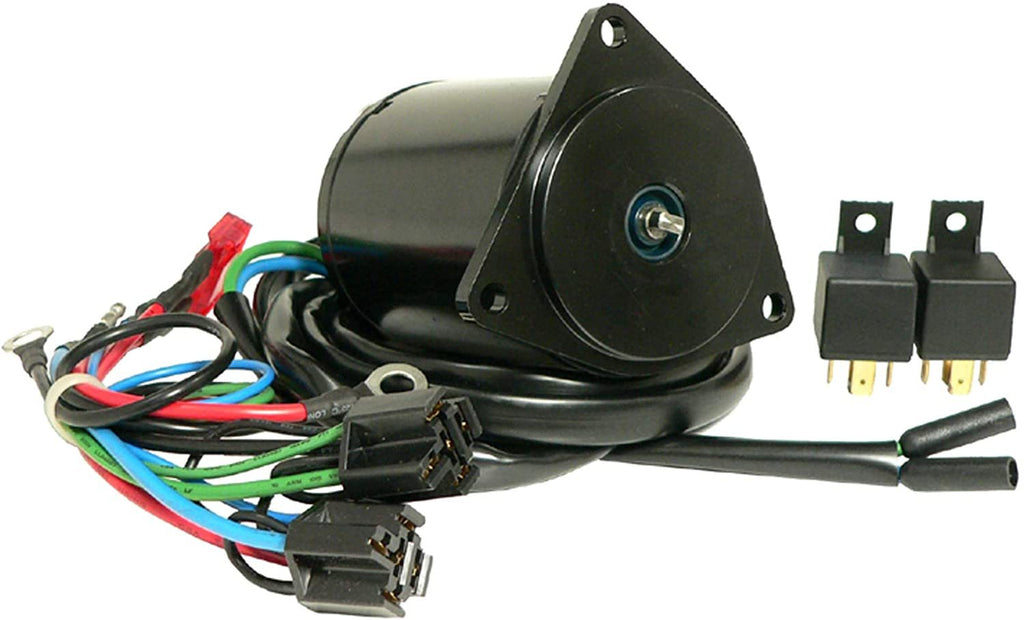

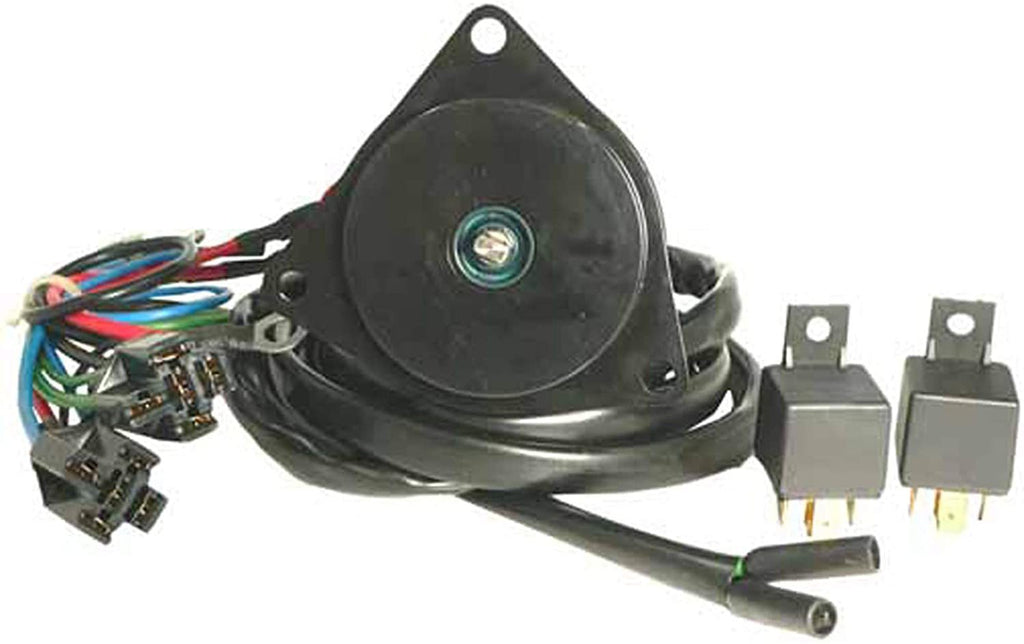

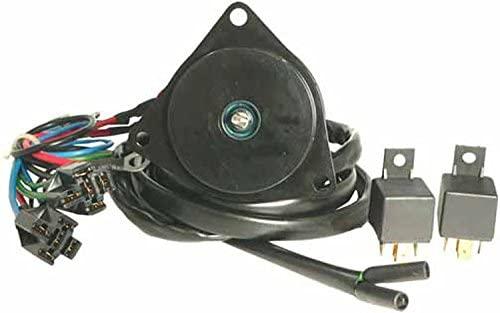

Brief TILT MOTOR
FOR YAMAHA 50-200HP 1984-91
3-WIRE CONNECTION (RING TERMINAL ENDS)
68.3mm MTG FLANGE DIAMETER
ARM SHAFT FLAT BLADE 4mm THICK

Replaces these part numbers:
API MARINE PT612NM
ARCO MARINE 6267
ARROWHEAD TRM0053
J & N 430-22082
LESTER 10835
YAMAHA 688-43880-11-00, 6E5-43880-01-00, 6E5-43880-02-00

Fits other Engines Please ask if yours not listed.

1 Year Warranty

CM Marine
Auckland

Compatible With/Replacement For: YAMAHA 115ETL 1984-1984, 115ETL 1985-1986, 115ETX 1984-1984, 115ETX 1985-1986, 150ETL 1985-1986, 150ETX 1985-1986, 175ETL 1985-1986, 175ETX 1985-1986, 200ETL 1984-1984, 200ETL 1985-1986, 200ETX 1984-1984, 200ETX 1985-1986, 50ETML 1990-1990, 50TLH 1991-1991, 70ETL 1984-1984, 70ETL 1985-1986, 90ETL 1984-1984, 90ETL 1985-1986, 90ETLJD 1986-1986, 90ETX 1984-1984, L150ETX 1986-1986, L200ETX 1986-1986, P50TLR 1991-1991, PRO50L 1987-1990
