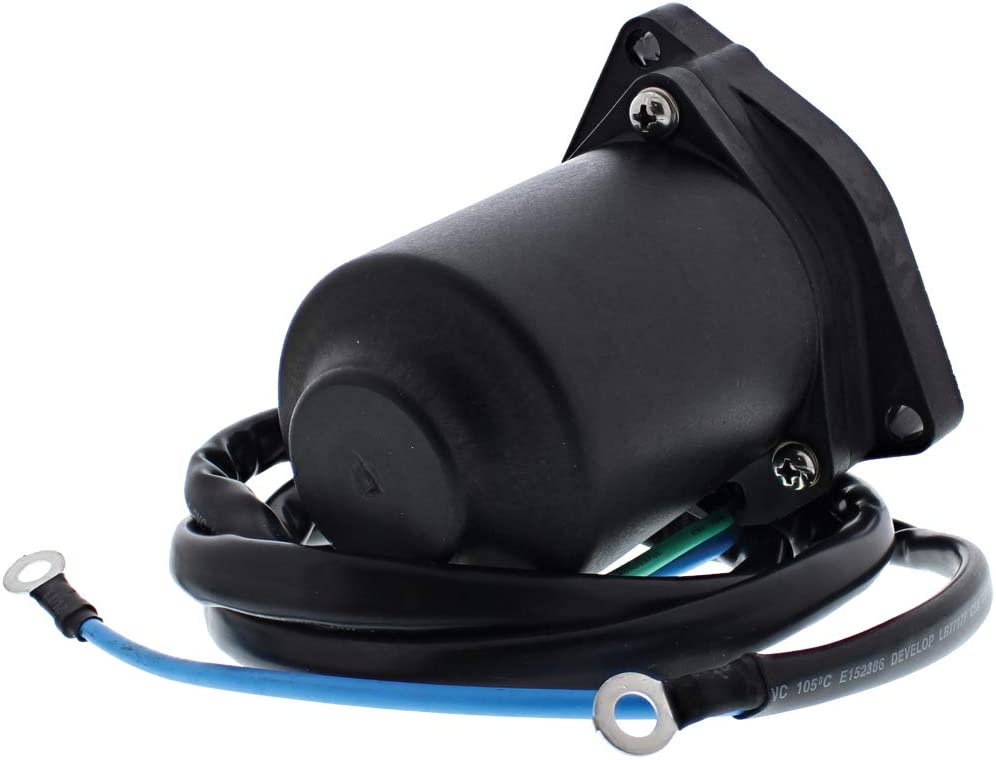

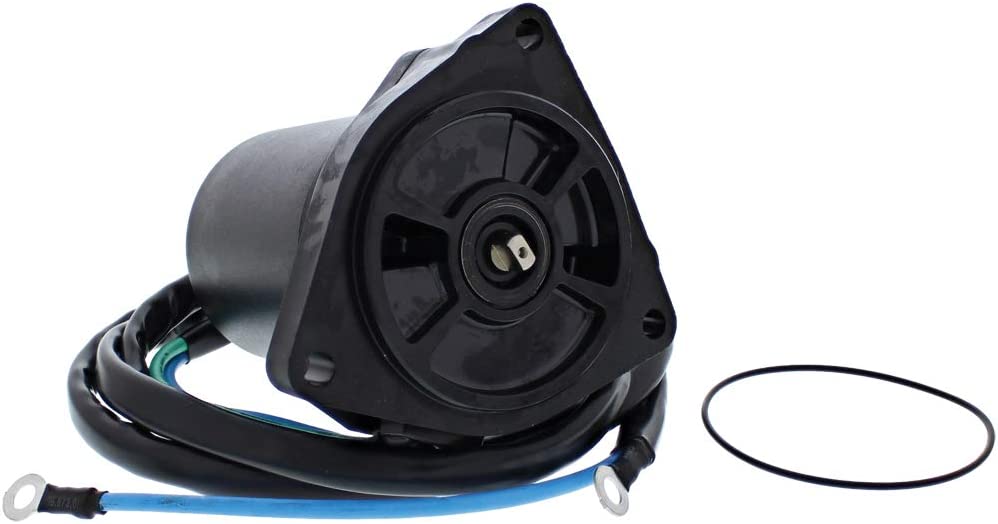

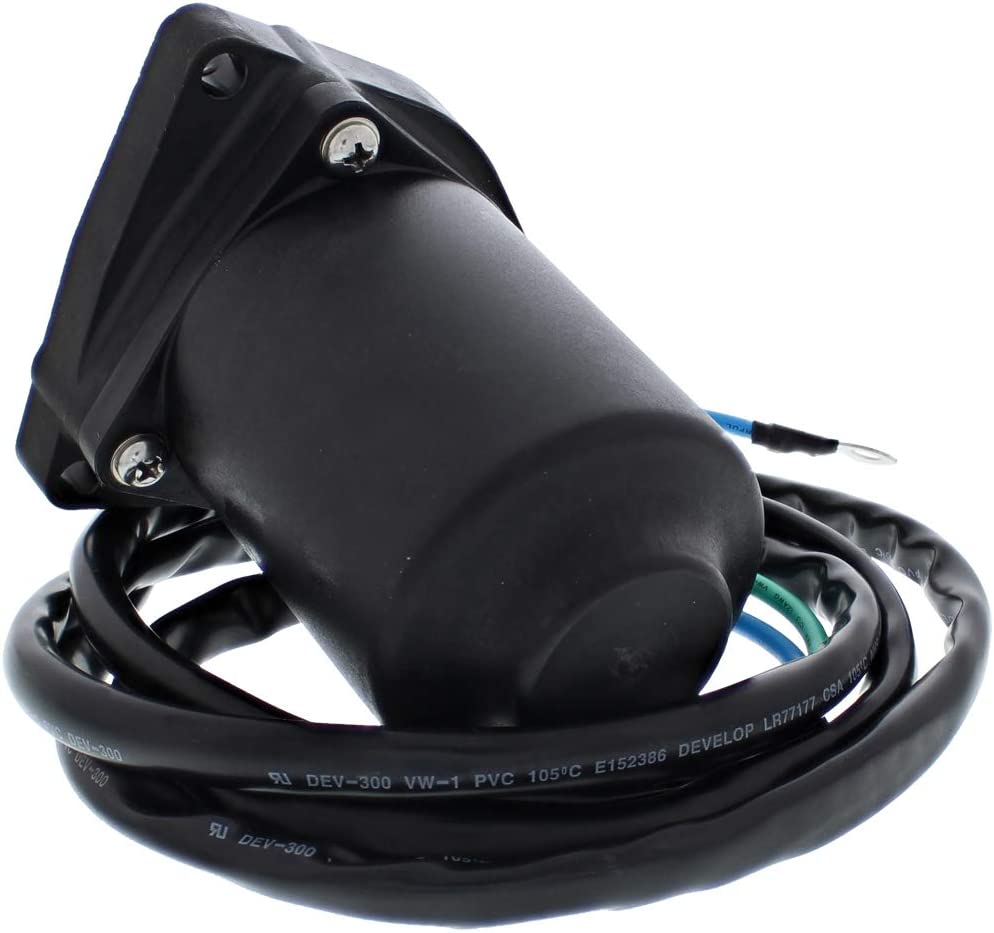

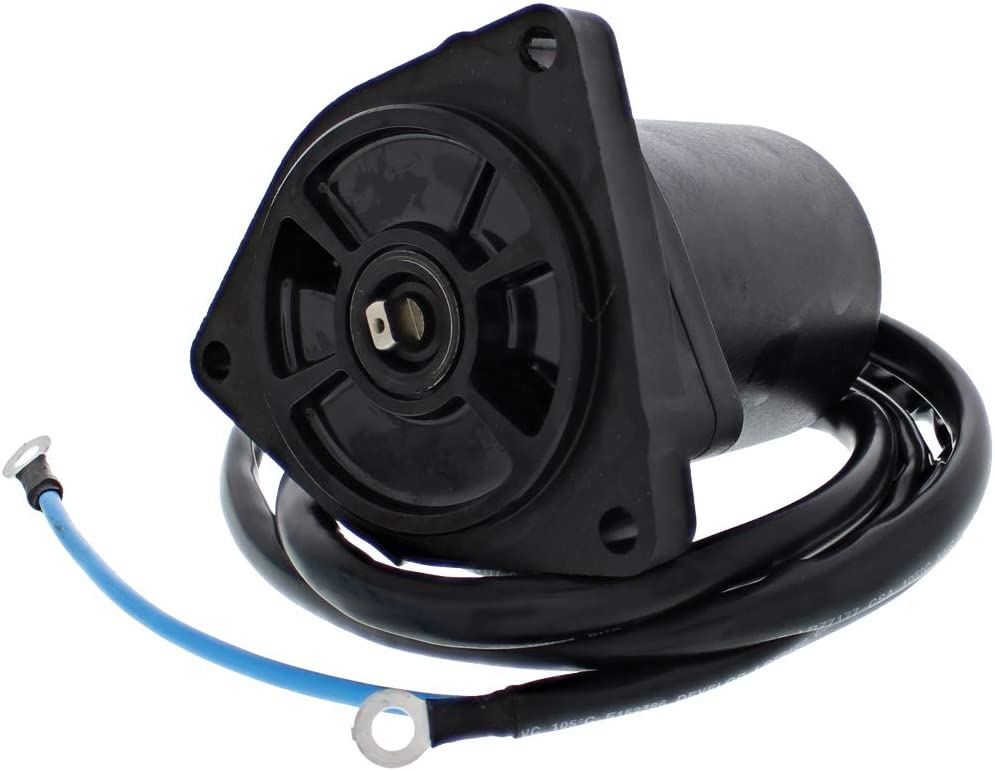

Tilt Trim Motor for 150hp Yamaha F150JA, F150XA, LF150XA 2012-2018
$299.99
Applications:
YAMAHA Tilt & Trim Various Models 2013 -2018 ONWARDS 150H.P.
F150JA, F150JB, F150LA, F150LB, F150TJR, F150TLR, F150TXR, F150XA, F150XB, LF150TXR, LF150XA, LF150XB
Specifications:
| Item Condition | Aftermarket Part |
| Unit Type | Tilt & Trim Motor |
| Voltage | 12 |
| Rotation | RE |
| Dimension | Replacement Unit:, 65.5mm Field Hsg. OD, 68.3mm Registration OD, OAL 124.5mm Incl. Shaft, 7.9mm OD Shaft, w/3.9mm x 6.1mm Tang, Mtg. Holes 7mm, Mtg. Ring 68.3mm OD, Coupler 4.28mm x 8mm Flat Blade, Blue Wire 64", Green Wire 58.5", w/6.3mm Eyelets, |
| Fits | Yamaha 150HP Outboards 2011-18 |
Replaces these part numbers:
| ARROWHEAD | 430-22162 |
| J & N | 430-22162 |
| Yamaha | 63P-43880-01-00, 63P-43880-10-00, 63P-43880-11-00, 63P-43880-21-00, 63P-43880-22-00 |
Fits other Engines Please ask if yours not listed.
1 Year Warranty
